THE FUJI SYSTEMS



The DIY Series

To meet the growing demand of the DIY market, Fuji Spray® has introduced the DIY PRO Series, which has the most powerful 2-stage systems on the market; The Fuji Spray Hobby-PRO 2™ and the Fuji Spray Semi-PRO 2™ HVLP Spray System. Both Systems offers features like no other in its price range.

The DIY series is ideal for spraying walls, ceiling, doors, fences, shutters, cabinets, etc. It’s the go to system for workshop, garden or home use.

All DIY PRO Series include the Fuji M-Model™ Spray Gun which has professional features such as Non-Bleed and a Fan Control Knob to adjust pattern size from small circular to wide (and all increments in between).

Most HVLP Systems typically feature low wattage motors that are underpowered for most spraying. Our 1400 watt 2-stage Bypass Motor in Metal Turbine Case with handy Gun Holder can handle any type of coating.

The Fuji Spray Hobby-PRO 2™ and the Fuji Spray Semi-PRO 2™ will allow the user to obtain an outstanding finish making you look like a Professional.

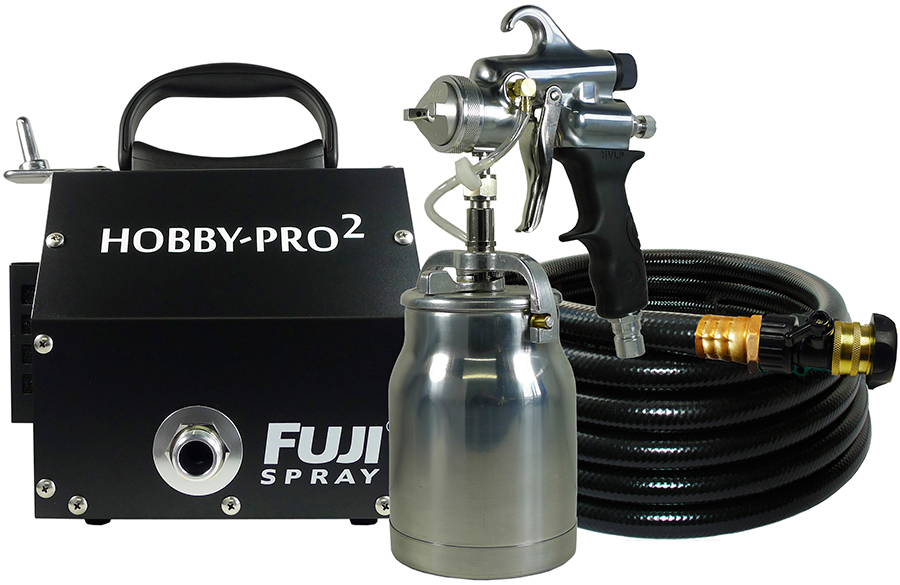

The Hobby-PRO 2™ System

OLYMPUS DIGITAL CAMERA



All Hobby-PRO 2™ Systems include a 1.8mm Aircap Set installed, full 25ft Hose, Quick Connect Coupler and Air Control Valve plus a 20 page User Manual.

All Hobby-PRO 2™ Systems are equipped with a 1 Qt. Bottom Feed Cup.

Also included with the Hobby-PRO 2™ System is a Bottom Feed Cup Parts Kit as well as an extra pair of Turbine Filters.

The Semi-PRO 2™ System

Fuji Semi Pro 2 System

All Semi-PRO 2™ Systems include a 1.3mm Aircap Set installed, full 25ft Hose, Quick Connect Coupler and Air Control Valve plus a 20 page User Manual.

The Semi-PRO 2™ series is available in 2 different models, on the left you can see the bottom feed version, equipped with a 1 Qt. bottom feed cup.

Below please see the Gravity version.









 The Semi-PRO 2™ Gravity

Semi-PRO 2™ Gravity version is equipped with a 400cc aluminum cup which allows the consumer to spray easily in corners and work in tight spots.

To view our latest Semi-PRO 2™ Brochure please CLICK HERE



The Semi-PRO 2™ is for the DIY/serious user. Includes a full 25ft Hose, Quick Connect Coupler and Air Control Valve plus 20 page User Manual included.





What’s included with every Fuji Semi-PRO 2™ System?

The Turbine, M-Model™ Spray Gun with Cup, 25ft Hose with Quick-Connect, Air Control Valve, User Manual, Viscosity Cup, Wrench, Cleaning Brush. In other words… everything except the paint.

DIY Series SPECIFICATIONS

Model Semi-PRO 2™ Semi-PRO 2 Gravity™ Hobby-PRO 2™
Spray Gun M-Model M-Model M-Model
Aircap Set 1.3mm 1.3mm 1.8mm
Nozzle & Needle Stainless Steel Stainless Steel Stainless Steel
Cup Capacity 1 Quart (1000cc) 400cc 1 Quart (1000cc)
Cup Type Quick Release Screw-On Quick Release
Hi-Flex™ Hose 25ft (7.6m) 25ft (7.6m) 25ft (7.6m)
Motor Type 2-Stage – 1400 watt 2-Stage – 1400 watt 2-Stage – 1400 watt
Air Filters (2) Washable Washable Washable
Turbine Dimensions 11″ x 8.6″ x 8.1″ 11″ x 8.6″ x 8.1″ 11″ x 8.6″ x 8.1″
Metric Dimensions 28cm x 22cm x 20.5cm 28cm x 22cm x 20.5cm 28cm x 22cm x 20.5cm
System Weight 25.2lbs (11.5kg) 25.2lbs (11.5kg) 25.2lbs (11.5kg)
Warranty 24 Months-Parts & Labor 24 Months-Parts & Labor 24 Months-Parts & Labor



The Mini-Mite PLATINUM™ Series

With the Mini-Mite PLATINUM™ Series you can spray cabinets, furniture, autos or pianos – in fact, anything wood or metal. It’s a powerful, portable system for all fine-finishing.

What’s new in the Mini-Mite PLATINUM Series?

The Fuji Spray Heat Dissipation Box™

Fuji Spray has designed a unique method of removing any heat build up from the Turbine case.  Excess heat is channeled to a Heat Dissipation Box™ located at the rear of the case.

Because the hot air is dissipated evenly through an optimum surface area with 60 holes, there is no added hiss or loud whistling noise.  There is also no blowing around of dust.

The benefits of a cooler running unit results in a longer life for your turbine motor compared to standard turbines.

Fuji Spray Noise Reduction Covers™

The Mini-Mite™ PLATINUM Turbines are equipped with a method to reduce noise. The Noise Reduction Covers™ house the Filters. Ambient air is entrained only from the rear effectively removing any Direct Sound Paths. Air is drawn in through a large Rear Aperture and through specially designed ‘Finger Slots’ for optimum performance.



The Mini-Mite 3 PLATINUM™ Series

2903-T70 Mini-Mite3 Platinum for web



The Mini-Mite 3 PLATINUM™ utilizes a powerful 3-stage Turbine Motor installed in a durable Metal Turbine powder coated case. Both the T-Model Spray Gun (USA Patented)  and the GXPC Spray Gun are Non-Bleed with a side Pattern Control Knob (to adjust the size of the fan pattern) with Stainless Steel Fluid Components. Plus extra features such as an Air Control Valve and a High-Efficiency Aircap for even less overspray.

It is often thought that the reason that most people purchase an HVLP system is for speed, but we have found that the main reason is really the desire for a high quality of finish. Of course, any spray system is a few times faster than brushing – admittedly, even a cheap version will give you speed. But for quality of finish, you do need power and a high quality spray gun with all the features. Please read the information on our Components Page where these features are described. This will give you the knowledge you need to make an educated decision.

The Mini-Mite 3 PLATINUM™ T-70 is a real favorite with cabinet makers and professionals. Fuji installs a powerful 3-stage Turbine Motor. The Mini-Mite 3 PLATINUM™ is a professional standard 3-stage system – by ‘standard’ we mean that the turbine does not have the patented noise-reduction feature as seen on the Fuji Q-Series. However the noise level is no more than any other standard HVLP turbine on the market. The MM3 Turbine develops 6.5psi. This is more than enough pressure to spray all known coatings (when properly thinned) and all the newer water-based coatings.

Spray anything from wood or metal. A powerful, portable system for all fine-finishing. For an independent Review and Video of this system (albeit with the older Fuji Spray Gun) please click here.

Recently voted Authors Best Overall and Best Value in Fine Woodworking Magazine. Click Here to read the article. (www.FineWoodworking.com)

FW_best_value_CMYKUntitled-3

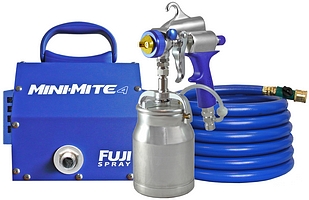

The Mini-Mite 4 T-Series™ Model

2804-T75G Mini-Mite4 Platinum for web



The Mini Mite 4 PLATINUM™ system uses the most powerful 4-stage Turbine Motor on the market (same as the Q4 PLATINUM™). This system is recommended for those who want the extra power available – a full 9psi. As with the Mini Mite 3 PLATINUM™, there is no noise reduction feature, so this should be taken into account if noise level is a factor.

The Mini Mite 4 PLATINUM™ is equipped with the new Fuji T-Series™ Spray Gun and is available in either a 1Qt Pressure-Feed Cup or a 600cc Gravity Cup.





What’s included with every Fuji Mini-Mite 3 & 4 PLATINUM™System?

The Turbine, Choice of Fuji Spray Gun (T70, T75G or GXPC) with Cup, 25ft Hose with Quick-Connect, Air Control Valve, User Manual, Viscosity Cup, Wrench, Cleaning Brush. In other words… everything except the paint.

The Mini-Mite 5 PLATINUM™ Model

2905-T70 Mini-Mite 5 PLATINUM for web





The Mini-Mite 5 PLATINUM™ Turbine System is the most powerful 5-stage Turbine Motor on the market.

Additional power allows the user to apply heavier coatings and thicker viscosity finishes faster and with less time spent on preparation of materials.

PSI:        The 5-stage Turbine develops approximately 9.5 PSI.

Five Bonus items included inside every Mini-Mite 5 PLATINUM™ package – 5 for 5 (6’ Whip Hose, Wet Film Gauge, 19 pc Spray Gun Cleaning Kit, Extra Turbine Filters and “Always Measure” Booklet – Record your material preparation and results).



Tool of the year - power tool



Voted Power Tool of the Year in Canadian Woodworking Magazine. Click here for a list of all winners.



Fuji Spray recommends a 5-stage or a 4-stage system when spraying automotive finishes.

Important:  The Mini-Mite PLATINUM Series Turbines have different size filters to the other Mini-Mite Turbines.  These Mini-Mite PLATINUM filters (7224-2) are available in a 2-pack and have the shape of a hand, rather than a square.

For previous versions of the Mini-Mite Turbines (Prior to July 2016) please refer to  (square filters) Part #4009-2

What’s included with every Fuji Mini-Mite 5 PLATINUM™ System?

The Turbine, Choice of Fuji Spray Gun (T70, T75G or GXPC) with Cup, 25ft Hose with Quick-Connect, Air Control Valve, User Manual, Viscosity Cup, Wrench, Cleaning Brush and 5 for 5 Bonus Kit.

MM & Q Specs Charts V1-1

The Q PLATINUM™ Series – QUIET!

The Q PLATINUM™ Turbines are for those who simply want the BEST!

Our Q™ ‘Quiet’ turbines are the quietest on the market!

The Q-Series Systems are perfect for fine-finishing of cabinets, furniture, as well as medium to heavy painting projects.

What’s new in the PLATINUM™ Series?

 The Fuji Spray Heat Dissipation Box™

The Q PLATINUM™ Series features many new technological advancements. Incorporated into its design is a proprietary Heat Dissipation Box (HDB). The HDB expels excess heat from the turbine resulting in much cooler operating temperatures. Less heat translates to longer motor life for your turbine. Because the hot air is routed to the rear of the turbine and passes through 60 holes the process is silent.

The Q3 PLATINUM™ Model – QUIET!

3003-T70 Q3 Platinum for web

The Q3 PLATINUM™ system has the added feature of  extensive noise-reduction. The Fuji noise reduction method is patented in the USA. Research & Development was conducted by engineering staff at Carleton University in Canada under a partial Government grant program. Noise is reduced by over 50% making this the quietest 3-stage turbine available today.

The Q3 PLATINUM™ 3-stage Turbine Motor develops approximately 6.5psi. This system is ideal for Cabinet Makers and Furniture Refinishers. Perfect for any type of fine-finishing.At 15ft the Q3 PLATINUM™ Turbine is only 62 dba, at 20ft is it 59 dba. Normal Conversation is 60 dba.



The Q4 PLATINUM™ Model – QUIET!

2894-T75G Q4 Platinum for web



The Q4 PLATINUM™ is for Paint Contractors, industrial and commercial refinisher’s looking for a powerful 4-stage system that can spray a variety of different material at ease. The Q4 PLATINUM™ 4-stage turbine develops approximately 9psi, allowing for less thinning of paints than a 3 or 2 stage Turbine. The Q4 PLATINUM™ Turbine is perfect for fine-finishing of cabinets, furniture, as well as medium to heavy painting projects.

At 15ft the Q4 PLATINUM™ Turbine is only 61 dba, at 20ft it is 58 dba. Normal Conversation is 60 dba.





What’s included with every Fuji Q3 & Q4 PLATINUM™ System?

The Turbine, Choice of Fuji Spray Gun (T70, T75G or GXPC) with Cup, 25ft Hose with Quick-Connect, Air Control Valve, User Manual, Viscosity Cup, Wrench, Cleaning Brush. In other words… everything except the paint.



The Q5 PLATINUM™ Model – QUIET!

3005-T70 Q5 PLATINUM for web





Introducing the Ultimate Turbine!

The Q5 Platinum™ System with its powerful 5-stage Turbine Motor producing approximately 9.5psi is the latest addition to the Fuji lineup. The extra power allows for less thinning of viscous paints and achieves finer atomization.

The Q5 utilizes the same patented noise reduction seen in our Q3 and Q4 models. The result is the quietest 5-stage HVLP Turbine on the market.



What’s new in the PLATINUM™ Series?

The Fuji Spray Heat Dissipation Box™

AS mentioned above the Q PLATINUM™ Series features many new technological advancements. Incorporated into its design is a proprietary Heat Dissipation Box (HDB). The HDB expels excess heat from the turbine resulting in much cooler operating temperatures. Less heat translates to longer motor life for your turbine. Because the hot air is routed to the rear of the turbine and passes through 60 holes the process is silent.

Another key feature  within the Q5 PLATINUM™ Series is the Master Speed Control that offers you the ability to adjust the psi/cfm to the optimum adjustment needed to perfectly atomize your coating and yet reduce the overspray/bounceback to an absolute minimum. Click Here to see how to use your Variable Speed Controller Dial.

Use your Q5 Platinum™ for light tasks or for heavy-duty projects.

At 15ft the Q5 PLATINUM™ Turbine is only 63 dba, at 20ft it is 60 dba. Normal Conversation is 60 dba.

Fuji Spray recommends a 5-stage or a 4-stage system when spraying automotive finishes.

Five Bonus items included inside every Q5 PLATINUM™ package – 5 for 5.

  1. 6’ Whip Hose
  2. Wet Film Gauge
  3. 19 pc Spray Gun Cleaning & Maintenance Kit with Lubricant
  4. Extra Turbine Filter
  5. “Always Measure” Booklet – Record your material preparation and results

What’s included with every Fuji Q5 PLATINUM™ System?

The Turbine, Choice of Fuji Spray Gun (T70, T75G or GXPC) with Cup, 25ft Hose with Quick-Connect, Air Control Valve, User Manual, Viscosity Cup, Wrench, Cleaning Brush and 5 for 5 Bonus Kit.

Please go to The Components Page to see more details about what goes into each system.

MM & Q Specs Charts V1-2
